What is the difference between industrial and aviation grade firesleeve
Firesleeve - Industrial Knit & Heavy Duty Braid - Hydraulic Hose Protection
Silicone Rubber Coated Fiberglass Sleeve & Jacket for Wire, Cable, Hydraulic Hose and Tubing Protection
High Temperature, Heat, Flame & Fire Resistant
500°F / 260°C Continuous Exposure
800°F / 426°C Short Term Exposure
2200°F / 1205°C Excursions
3000°F / 1650°C Peak Exposure
FlameShield™ Firesleeve (sometimes spelled fire sleeve or fire-sleeve) is the perfect sleeve and jacket choice for protecting industrial hydraulic hoses and lines, pneumatic lines, fuel & oil hose lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire and pyro exposure. The extra thick special formulation of silicone rubber on our firesleeve sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. Firesleeve also provides protection from ozone, UV and abrasion. Firesleeve is highly resistant to harsh industrial environments.

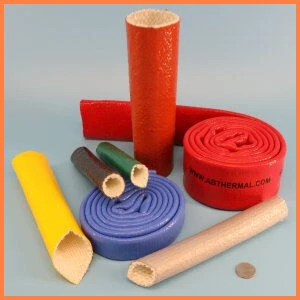

The standard colour of is red-oxide, but custom colours such as blue, grey, black, yellow and green are available; great for identifying hose and cable use when the sleeve is installed. Firesleeve is THE standard high-temperature and molten splash pyro protection jacket and sleeve for hose & cable.
Normally supplied in 50 & 100 foot lengths, but custom by-the-foot lengths are also available.
The industrial grade of Firesleeve is fabricated from a knit fiberglass yarn substrate, while the heavy duty industrial grade Firesleeve is fabricated from a thicker and denser braid fiberglass yarn.
Available in sizes ranging from 0.25" Inside Diameter through 5" I.D. in 27 size steps. Meets 14 CFR 25.869(a)(4); Appendix F, Part 1(b)(7) (60-degree flammability Test).
Available in sizes ranging from 0.25" Inside Diameter through 5" I.D. in 27 size steps. Meets 14 CFR 25.869(a)(4); Appendix F, Part 1(b)(7) (60-degree flammability Test).

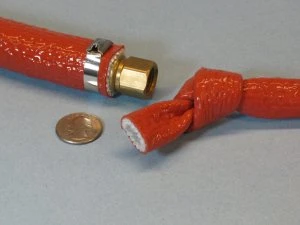

Smaller sizes of FlameShield firesleeve are highly conformable as seen in the photo to the right - it can be easily tied into a knot.
Part Numbers:
Industrial Knit Version: S-FS (followed by product size/color/packaging nomenclature)
Industrial Heavy Duty Braid Version: S-FSHD (followed by product size/color/packaging nomenclature)
S-FS: S-FS-M006-04, S-FS-M008-05, S-FS-M010-06, S-FS-M011-07, S-FS-M013-08, S-FS-M015-09, S-FS-M016-10, S-FS-M017-11, S-FS-M019-12, S-FS-M020-13, S-FS-M022-14, S-FS-M025-16, S-FS-M029-18, S-FS-M032-20, S-FS-M035-22, S-FS-M038-24, S-FS-M041-26, S-FS-M044-28, S-FS-M048-30, S-FS-M051-32, S-FS-M057-36, S-FS-M060-38, S-FS-M064-40, S-FS-M067-42, S-FS-M070-44, S-FS-M073-46, S-FS-M076-48, S-FS-M083-52, S-FS-M089-56, S-FS-M095-60, S-FS-M102-64, S-FS-M114-72, S-FS-M127-80
S-FSHD: S-FSHD-M006-04, S-FSHD-M008-05, S-FSHD-M010-06, S-FSHD-M011-07, S-FSHD-M013-08, S-FSHD-M015-09, S-FSHD-M016-10, S-FSHD-M017-11, S-FSHD-M019-12, S-FSHD-M020-13, S-FSHD-M022-14, S-FSHD-M025-16, S-FSHD-M029-18, S-FSHD-M032-20, S-FSHD-M035-22, S-FSHD-M038-24, S-FSHD-M041-26, S-FSHD-M044-28, S-FSHD-M048-30, S-FSHD-M051-32, S-FSHD-M057-36, S-FSHD-M060-38, S-FSHD-M064-40, S-FSHD-M067-42, S-FSHD-M070-44, S-FSHD-M073-46, S-FSHD-M076-48, S-FSHD-M083-52, S-FSHD-M089-56, S-FSHD-M095-60, S-FSHD-M102-64, S-FSHD-M114-72, S-FSHD-M127-80
